Aftermarket Replacement Fan Blade For Toyota : 16361-23860-71, DAEWOO

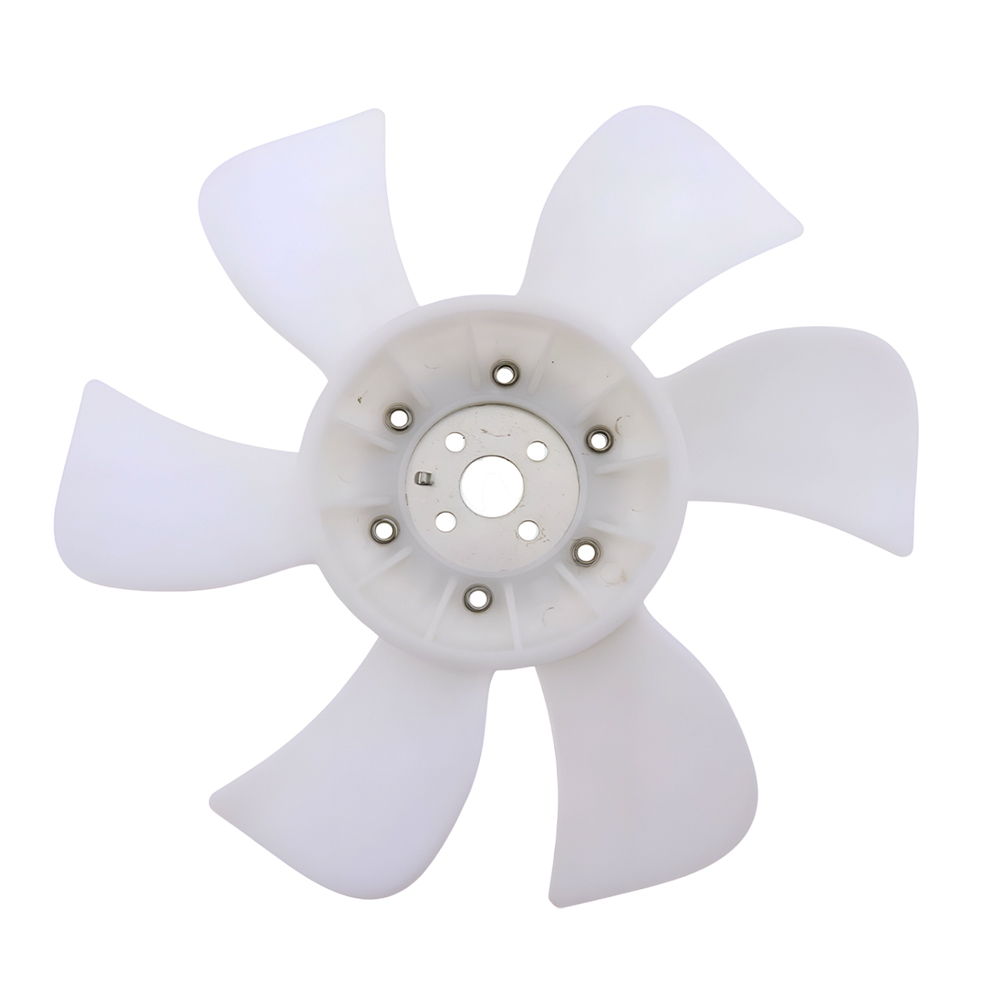

FAN BLADE FOR TOYOTA : 16361-23860-71

Our Price: $25.40
BRAND: Aftermarket




Check compatibility. Ask our experts.
Part Number:
TY16361-23860-71
Qty:

Description


Don’t allow your forklift to run on weary and damaged fan blades. We introduce our newest and dependable Forklift Fan Blade for Toyota that you can buy at a reasonable price. Forklift Fan Blade functions by sustaining the longevity and effectiveness of the whole forklift engine. It is considered an essential part of a forklift, most especially the engine’s cooling system. Without working fan blades, the forklift is unable to run and operate.


This forklift fan blade for Toyota is compatible with the following part numbers:

TOYOTA 16361-23860-71 TOYOTA 16361-23860-71 TY163612386071 TOYOTA 16361-23860-71 TY 163612386071 TY 16361-23860-71 TOYOTA163612386071 163612386071 TOYOTA 163612386071 , TY 16361-23860-71


SPECIFICATION:

BLADE TYPE/ SHAPE PVC - SPECIAL OD 15.94" 405MM

LARGE HOLES 4

DISTANCE BETWEEN LARGE HOLES 2.06" 52MM

PROFILE 3.07" 78MM


This part can also be found in the following part numbers: DWTS 16361-23860-71.


Purchasing this product comes with a 1-year limited warranty. Our forklift fan blade for Toyota enables the engine to operate by keeping it cool when the temperature gets too hot within. It allows the forklift to continue its operation.


How to replace the fan blade?


  • Shut your forklift’s engine first before replacing the blades. Ensure the keys are removed.

  • It is advisable to wait for a few minutes enough for the engine to cool down to ensure that it is already safe to continue with the process.

  • For safety reasons, always wear gloves when replacing the fan.

  • Install the new fan.


How to identify the correct forklift fan blade for Toyota?


  • Compatibility of the fan blade with your Toyota forklift

  • Brand compatibility

  • Price of the product and its warranty


In any forklift maintenance, you should not forget to check your fan blades. If you notice damages, like tiny cracks appearing on the plastic blades, replace the blades immediately to ensure that your forklift has enough support in its cooling system.


Application: Forklift

Model Serial PrefixEngineMake
02-5FDU35-11ZTOYOTA
6FD20-1DZTOYOTA
6FD23-1DZTOYOTA
02-6FDU20-1DZTOYOTA
6FG20-4YTOYOTA
6FGCU15-4YTOYOTA
6FGCU20-4YTOYOTA
42-6FGU25-4YTOYOTA
6FD20-1DZTOYOTA
6FD25-1DZTOYOTA
6FD30-1DZTOYOTA
7FGCU25-4YTOYOTA
7FGCU32-4YTOYOTA
7FGU35-GM 6 CYLTOYOTA
7FGU45-GM 6 CYLTOYOTA
7FGU70-GM 6CYLTOYOTA
8FGU32-4YTOYOTA
FGZN25-4YTOYOTA
FGZN30-4YTOYOTA
5FD10-1DZTOYOTA
5FD14-1DZTOYOTA
5FD15-1DZTOYOTA
5FD18-1DZTOYOTA
02-5FDU15-1DZTOYOTA
02-5FDU18-1DZTOYOTA
02-5FDU40-11ZTOYOTA
02-5FDU45-11ZTOYOTA
6FD25-1DZTOYOTA
02-6FD28-1DZTOYOTA
6FD30-1DZTOYOTA
02-6FDAU50-13ZTOYOTA
02-6FDU15-1DZTOYOTA
02-6FDU18-1DZTOYOTA
02-6FDU25-1DZTOYOTA
02-6FDU33-13ZTOYOTA
02-6FDU35-13ZTOYOTA
02-6FDU40-13ZTOYOTA
02-6FDU45-13ZTOYOTA
02-6FGU30-4YTOYOTA
42-6FG23-4YTOYOTA
42-6FG25-4YTOYOTA
6FGCU18-4YTOYOTA
6FGCU25-4YTOYOTA
42-6FGCU30-4YTOYOTA
42-6FGU15-4YTOYOTA
42-6FGU18-4YTOYOTA
42-6FGU20-4YTOYOTA
52-6FG30-GM-4181TOYOTA
52-6FGC30-GM-4181TOYOTA
52-6FGCU20-GM-4181TOYOTA
52-6FGCU25-GM-4181TOYOTA
52-6FGCU30-GM-4181TOYOTA
52-6FGCU33-GM 6CYLTOYOTA
52-6FGCU35-GM 6CYLTOYOTA
52-6FGCU40-GM 6 CYLTOYOTA
52-6FGCU45-GM 6 CYLTOYOTA
52-6FGU20-GM-4181TOYOTA
52-6FGU25-GM-4181TOYOTA
52-6FGU30-GM-4181TOYOTA
52-6FGU33-GM 6CYLTOYOTA
52-6FGU35-GM 6CYLTOYOTA
52-6FGU40-GM 6CYLTOYOTA
52-6FGU45-GM 6CYLTOYOTA
5FD10-1DZTOYOTA
5FD14-1DZTOYOTA
5FD15-1DZTOYOTA
5FD18-1DZTOYOTA
6FD20-1DZTOYOTA
6FD20-1DZTOYOTA
6FD23-1DZTOYOTA
6FD23-1DZTOYOTA
6FD25-1DZTOYOTA
62-6FD28-1DZTOYOTA
----
6FD30-1DZTOYOTA
6FD30-1DZTOYOTA
62-6FDU20-1DZTOYOTA
----
62-6FDU25-1DZTOYOTA
----
62-6FDU30-1DZTOYOTA
----
6FD23-1DZTOYOTA
6FD28-1DZTOYOTA
6FG20-4YTOYOTA
6FGCU15-4YTOYOTA
6FGCU18-4YTOYOTA
6FGCU20-4YTOYOTA
6FGCU25-4YTOYOTA
7FDU15-1DZTOYOTA
7FDU18-1DZTOYOTA
7FDU20-1DZTOYOTA
7FDU25-1DZTOYOTA
7FDU30-1DZTOYOTA
7FDU32-1DZTOYOTA
7FGAU50-GM 6 CYLTOYOTA
7FGCSU20-4YTOYOTA
7FGCU15-4YTOYOTA
7FGCU18-4YTOYOTA
7FGCU20-4YTOYOTA
7FGCU30-4YTOYOTA
7FGCU35-GM 6 CYLTOYOTA
7FGCU45-GM 6 CYLTOYOTA
7FGCU55-GM 6 CYLTOYOTA
7FGCU60-GM 6 CYLTOYOTA
7FGCU70-GM 6 CYLTOYOTA
7FGKU40-GM 6 CYLTOYOTA
7FGU15-4YTOYOTA
7FGU18-4YTOYOTA
7FGU20-4YTOYOTA
7FGU25-4YTOYOTA
7FGU30-4YTOYOTA
7FGU32-4YTOYOTA
7FGU60-GM 6CYLTOYOTA
7FGU80-GM 6CYLTOYOTA
8FBCHU25-ELECTRICTOYOTA
8FDU15-1DZTOYOTA
8FDU18-1DZTOYOTA
8FDU20-1ZSTOYOTA
8FDU25-1ZSTOYOTA
8FDU30-1ZSTOYOTA
8FDU32-1ZSTOYOTA
8FGCSU20-4YTOYOTA
8FGCU15-4YTOYOTA
8FGCU18-4YTOYOTA
8FGCU20-4YTOYOTA
8FGCU25-4YTOYOTA
8FGCU30-4YTOYOTA
8FGCU32-4YTOYOTA
8FGU15-4YTOYOTA
8FGU18-4YTOYOTA
8FGU20-4YTOYOTA
8FGU25-4YTOYOTA
8FGU30-4YTOYOTA
FDZN20-1DZTOYOTA
FDZN25-1DZTOYOTA
FDZN30-1DZTOYOTA
FGZN20-4YTOYOTA


This part can also be found in the following part numbers: DWTY16361-23860-71

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 1 Write a review »

  0 of 0 people found the following review helpful:

5 of 5 Working really well August 24, 2016
Reviewer: Brandon Wilson
Fan was simple to install and seems to work well.
