44101-L0702 Wheel Cylinder For Nissan
Category: Nissan Forklift Parts
Product Description

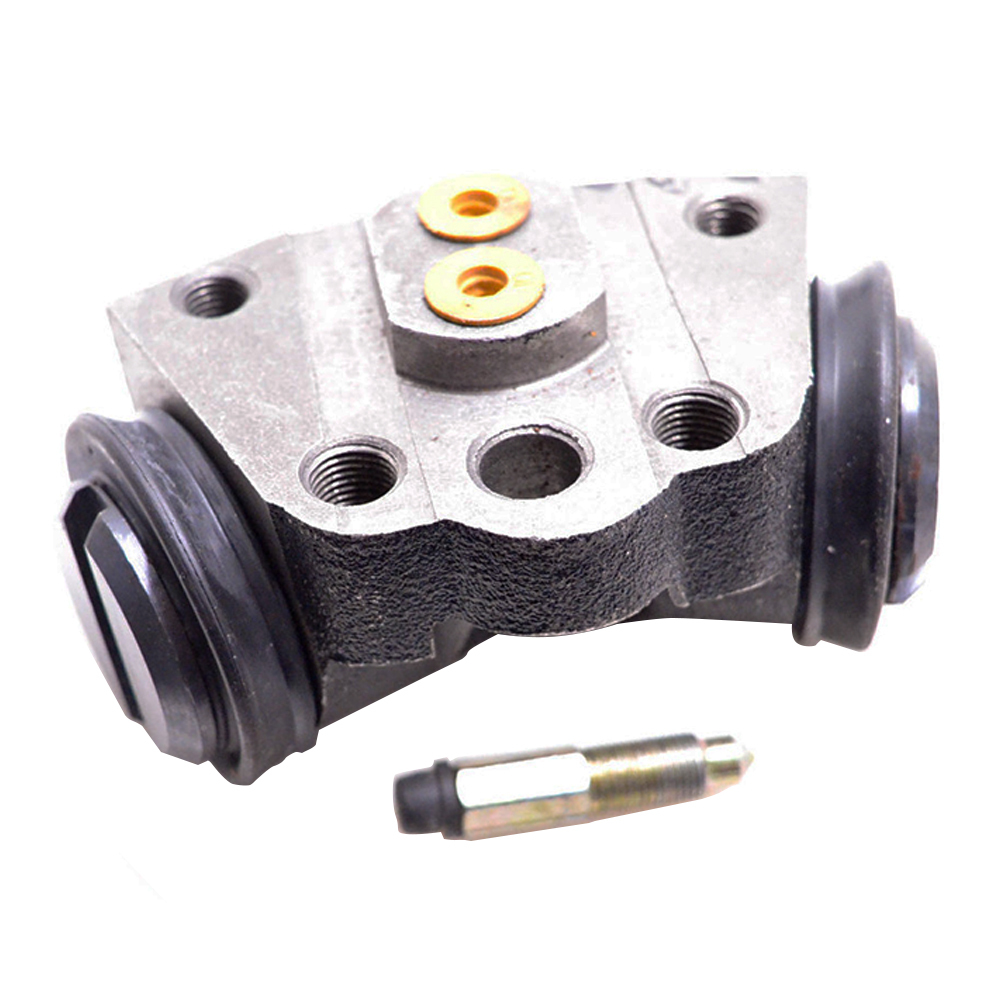

This is a Wheel Cylinder for Nissan Forklifts with Parts Number: 44101-L0702.
This part is also listed under the following part numbers:
- NISSAN44101-L0702
- NI44101L0702
- NISSAN 44101-L0702
- NI 44101L0702
- NI 44101-L0702
- NISSAN44101L0702
- 44101L0702
- NISSAN 44101L0702
- NI44101-L0702
Application: The Nissan 44101-L0702 Wheel Cylinder is compatible with select Nissan Forklifts. A complete list of compatible models is given here.
Product Specifications
Specifications of the NI44101-L0702 Wheel Cylinder:
Part Category
|
Wheel Cylinder
|
Brand
|
Aftermarket
|
Mounting Hole
|
4
|
Bore/ Inner Piston Diameter
|
11/4 Inch
|
Package Dimension
|
12 x 8 x 10 inches
|
Weight
|
4.15 lbs.
|
44101-L0702 Wheel Cylinder
This is an aftermarket replacement for OEM Nissan 44101-L0702 Wheel Brake Cylinder. This is a crucial part of the brake system of your Nissan Forklift. This Wheel Cylinder has been designed to perform the same or better than your OEM brake cylinder.
Symptoms of a faulty Wheel Cylinder
A wheel cylinder is a hydraulic cylinder that receives hydraulic pressure from the master cylinder and converts it into stopping force via the brake shoes. It is an integral part of the forklift brake system. A faulty wheel cylinder will generate inadequate breaking force or may cause total brake failure. As forklifts operate with heavy loads in a busy environment, it is absolutely necessary to make sure that wheel cylinders are working properly. There are a few signs that indicate faults with a wheel cylinder. The 3 major signs of a faulty wheel cylinder are the following:
- Soft or Mushy Brake Pedal: A faulty wheel cylinder will not have proper hydraulic feedback to your foot pressure. As a result, the brake pedal will feel soft or mushy. When you will depress the pedal, it will slowly sink towards the floor rather than getting back up instantly.
- Delayed Brake Response: Another major sign of a failing wheel cylinder is delayed brake response. If the wheel cylinder is not working properly, the hydraulic circuit fails to transfer the foot pressure to the wheel cylinder properly. This results in a considerable delay in braking action.
- Leaking Cylinders: A brake oil leakage is a telltale sign of a faulty wheel cylinder. Leaking means that there is not enough brake fluid in the reservoir, which leads to inadequate hydraulic pressure in the circuit.
Warranty Information
The Nissan 44101-L0702 Wheel Cylinder comes with a 1-year limited warranty.
Frequently Asked Questions
Is this an OEM part?
No, it is an aftermarket replacement for your Wheel Cylinder with OEM part number 44101-L0702.
Which Forklifts can use the NI44101-L0702 Wheel Cylinder?
You can use this Wheel Cylinder with select Nissan forklifts. A complete list of compatible models is given above.
Looking for something else for your Nissan Forklift? Please browse Our Catalog for Nissan Forklift Parts. Lift Parts Warehouse provides quality aftermarket parts at a very reasonable price. All parts come with a limited 1 Year Warranty. We also guarantee a 100% fit for our parts.
Compatible Models
Model
|
Serial Prefix
|
Engine
|
Make
|
BF03A33U
|
-
|
TB42
|
NISSAN
|
BF03A33V
|
-
|
TB42
|
NISSAN
|
BF03A35U
|
-
|
TB42
|
NISSAN
|
BF03A35V
|
-
|
TB42
|
NISSAN
|
BF03A40V
|
-
|
TB42
|
NISSAN
|
BF03H33U
|
-
|
TB42
|
NISSAN
|
BF03H35U
|
-
|
TB42
|
NISSAN
|
BGF03A40U
|
-
|
TB42
|
NISSAN
|
BGF03A45U
|
-
|
TB42
|
NISSAN
|
BGF03H40U
|
-
|
TB42
|
NISSAN
|
BGF03H45U
|
-
|
TB42
|
NISSAN
|
CHF03A30V
|
-
|
H30
|
NISSAN
|
CHF03A33V
|
-
|
H30
|
NISSAN
|
CHF03A35V
|
-
|
H30
|
NISSAN
|
PF02A20V
|
-
|
H20
|
NISSAN
|
PF02A25V
|
-
|
H20
|
NISSAN
|
PF02A30V
|
-
|
H20
|
NISSAN
|
CQF02A20V
|
-
|
SD22
|
NISSAN
|
CQF02A25V
|
-
|
SD22
|
NISSAN
|
CQF02A30V
|
-
|
SD22
|
NISSAN
|
CYB02L20V
|
-
|
ELECTRIC
|
NISSAN
|
CYB02L25RV
|
-
|
ELECTRIC
|
NISSAN
|
CYB02L25V
|
-
|
ELECTRIC
|
NISSAN
|
CYB02L28V
|
-
|
ELECTRIC
|
NISSAN
|
CYB02L30RV
|
-
|
ELECTRIC
|
NISSAN
|
PF02A20V
|
-
|
H20
|
NISSAN
|
PF02A25V
|
-
|
H20
|
NISSAN
|
PF02A30V
|
-
|
H20
|
NISSAN
|
QF02A20U
|
-
|
SD22
|
NISSAN
|
QF02A25U
|
-
|
SD22
|
NISSAN
|
QF02M20U
|
-
|
SD22
|
NISSAN
|
QF02M25U
|
-
|
SD22
|
NISSAN
|
QGF02A30U
|
-
|
SD22
|
NISSAN
|
QGF02M30U
|
-
|
SD22
|
NISSAN
|
UF03A33V
|
-
|
P40
|
NISSAN
|
UF03A35V
|
-
|
P40
|
NISSAN
|
UF03A40V
|
-
|
P40
|
NISSAN
|
WF03A33U
|
-
|
TD42
|
NISSAN
|
WF03A33V
|
-
|
TD42
|
NISSAN
|
WF03A35U
|
-
|
TD42
|
NISSAN
|
WF03A35V
|
-
|
TD42
|
NISSAN
|
WF03A40V
|
-
|
TD42
|
NISSAN
|
WF03H33U
|
-
|
TD42
|
NISSAN
|
WF03H33V
|
-
|
TD42
|
NISSAN
|
WF03H35U
|
-
|
TD42
|
NISSAN
|
WF03H35V
|
-
|
TD42
|
NISSAN
|
WGF03A40U
|
-
|
TD42
|
NISSAN
|
WGF03A40V
|
-
|
TD42
|
NISSAN
|
WGF03A45U
|
-
|
TD42
|
NISSAN
|
WGF03A45V
|
-
|
TD42
|
NISSAN
|
WGF03H40U
|
-
|
TD42
|
NISSAN
|
WGF03H40V
|
-
|
TD42
|
NISSAN
|
WGF03H45U
|
-
|
TD42
|
NISSAN
|
WGF03H45V
|
-
|
TD42
|
NISSAN
|
YF03A33TV
|
-
|
SD33
|
NISSAN
|
YF03A35TV
|
-
|
SD33
|
NISSAN
|
YF03A40TV
|
-
|
SD33
|
NISSAN
|
