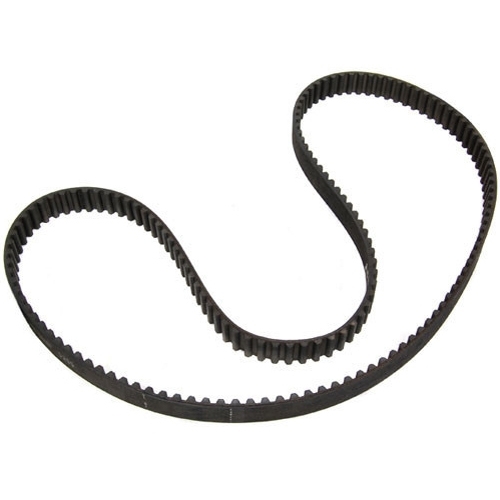

MD113561 Timing Belt for Mitsubishi & Caterpillar Forklifts

Product Description

If you're looking for a reliable and durable timing belt for your Mitsubishi or Caterpillar forklift, look no further than the MD113561 timing belt. This timing belt is made of high-quality rubber and nylon materials that resist wear and tear and ensure smooth and efficient engine performance. Order yours today from Lift Parts Warehouse and enjoy the benefits of a quality timing belt for your Mitsubishi or Caterpillar forklift.

Product Specifications

The specifications of the MD113561 timing belt are mentioned below.

Condition	New
Brand	Aftermarket
Part Type	Timing Belt
Manufacturer Part Number	MBMD113561
Tooth Width	0.19" 4.7MM
Tooth Height	0.07" 1.9MM
Top Width	0.75" 19.1MM
No of teeth	120
Pitch	0.37" 9.5MM
Height	0.16" 4.1MM
Compatible Equipment Type	Forklift
Compatible Equipment Make	Mitsubishi & Caterpillar
Modified Item	No

Warranty Information

This timing belt comes with a 12-month warranty.

Applications

Mitsubishi and Caterpillar Forklifts

Frequently Asked Questions

How do you install the timing belt in your forklift?

Here are some general steps to guide you through the process:

• Disconnect the negative battery cable and remove any components obstructing access to the timing belt cover, such as the air intake system, radiator fan, alternator, power steering pump, etc.

• Remove the crankshaft pulley bolt and the crankshaft pulley using a puller tool.

• Remove the timing belt cover bolts and the timing belt cover.

• Align the timing marks on the crankshaft sprocket and the camshaft sprocket with the marks on the engine block.

• Loosen the tensioner bolt and remove the old timing belt.

• Install the new MD113561 timing belt over the sprockets, ensuring no slack or twist in the belt.

• Tighten the tensioner bolt to the specified torque and rotate the crankshaft for two full turns to verify that the timing marks are still aligned.

• Reinstall the timing belt cover and its bolts.

• Reinstall the crankshaft pulley and its bolt.

• Reconnect any components that were removed earlier.

• Reconnect the negative battery cable and start the engine to check for proper operation.

What are the benefits of this timing belt?
The MD113561 timing belt is a high-quality product that offers several advantages over other timing belts on the market. Some of these benefits are:

• It is made of premium materials, such as aramid fiber and chloroprene rubber, to resist wear, heat, oil, and abrasion.

• It has a precise tooth profile and pitch that matches the OEM specifications and ensures optimal alignment and synchronization of the crankshaft and camshaft.

• It has a reinforced core that provides strength and stability to the belt and prevents stretching or sagging.

• It has a specially designed tensioner that maintains the proper tension and alignment of the belt throughout its service life.

• It has a long service life and can withstand harsh operating conditions.
