Product Description

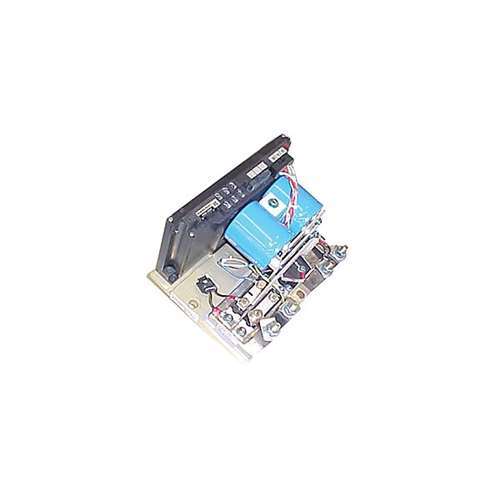

The EVT100-JB GE EVT100 Powerbase with JB Card is a third-generation DC transistor motor controller engineered for electric forklift trucks, delivering precise traction motor control for enhanced performance in material handling applications. Built on the legacy of the EV100 SCR Control and EV100LX, the EVT100-JB integrates advanced MOSFET and IGBT power transistor technology within its robust Powerbase assembly, ensuring durability and efficiency. The JB Card, a specialized logic card, serves as the system's central processing unit. Enabling adjustable features like creep speed, regenerative braking, and field weakening to optimize speed, torque, and energy efficiency.

This part can also be found under the following part numbers:

CL7006496, 7006496

GE EVT100 Powerbase with JB Card

Product Specification

The specifications of this controller card are mentioned below.

Condition	Remanufactured OEM
Brand	General Electric
Part Type	Controller Card
Manufacturer Part Number	EVT100-JB
Compatible Equipment Type	Forklift and Industrial Vehicles
Compatible Brand	Clark
Voltage Compatibility	24-84VDC

Features and Benefits

Adjustable Creep Speed: Fine-tunes low-speed operation (5% ON time) via Handset.
Regenerative Braking and Plug Braking: Recovers energy during deceleration, and provides retarding torque for smooth deceleration.
Field Weakening: Increases running speed on level surfaces.
Comprehensive Diagnostics System: Over 65 status codes displayed via Dash Display or Handset, with 16 stored fault codes.
Battery Discharge Indication (BDI): Monitors battery charge (100–0%), with alerts at 20% and pump disable at 10%.
Ramp Start: Maximizes torque for restarting on inclines, modulated by accelerator input.
Steer Pump Contactor Time Delay: Adjustable delay (0.5–63 seconds) for steer pump contactor dropout.
Thermal Protector (TP): Reduces current if the power transistor (Q1) overheats, auto-resets upon cooling.
Truck Management Module (TMM): Compatible with TMM, which monitors motor conditions (e.g., overtemperature, brush wear) with status code output.

Warranty Information

This product is backed by a 6-month warranty and is upgradeable for up to 36 months. All remanufactured and rebuilt items are subject to a core charge. The core charge is refundable. The status of the core will determine the amount of the refund returned.

Not Sure if This Part Fits Your Equipment?

Lift Parts Warehouse understands that selecting the correct parts for your equipment can be a challenging task. If you’re unsure whether this part is compatible with your model, we’re here to help! Contact our friendly customer service team through any of the following channels:

Phone:1.800.210.8170
Email: parts@liftpartswarehouse.com
Contact Form:https://www.liftpartswarehouse.com/contact-us
Live Chat: Available on our website during business hours.

Frequently Asked Questions (FAQs)

How Do I Test The Power Transistors (Q1)?

Use a digital multimeter to check the Q1 transistor for shorts or open conditions across the gate, drain, and source terminals. Remove power, discharge capacitors, and isolate Q1 before testing. Replace immediately if continuity is abnormal or resistance readings fall outside the specified range.

What Could Prevent The 1a Contactor From Closing?

Common causes include thermal hold-off, excessive motor current, or a welded contactor tip. Check for fault status codes and verify Function 6 settings. Inspect the coil voltage and wiring, ensuring the seat switch and directional inputs are functioning correctly.

How Do I Access Stored Fault Codes?

Connect the GE Handset to the Y-plug on the logic card or use the RS-232 port to access up to 16 stored fault codes. These logs help diagnose PMT shut-down events and include correlated BDI and hour meter data for comprehensive troubleshooting.
