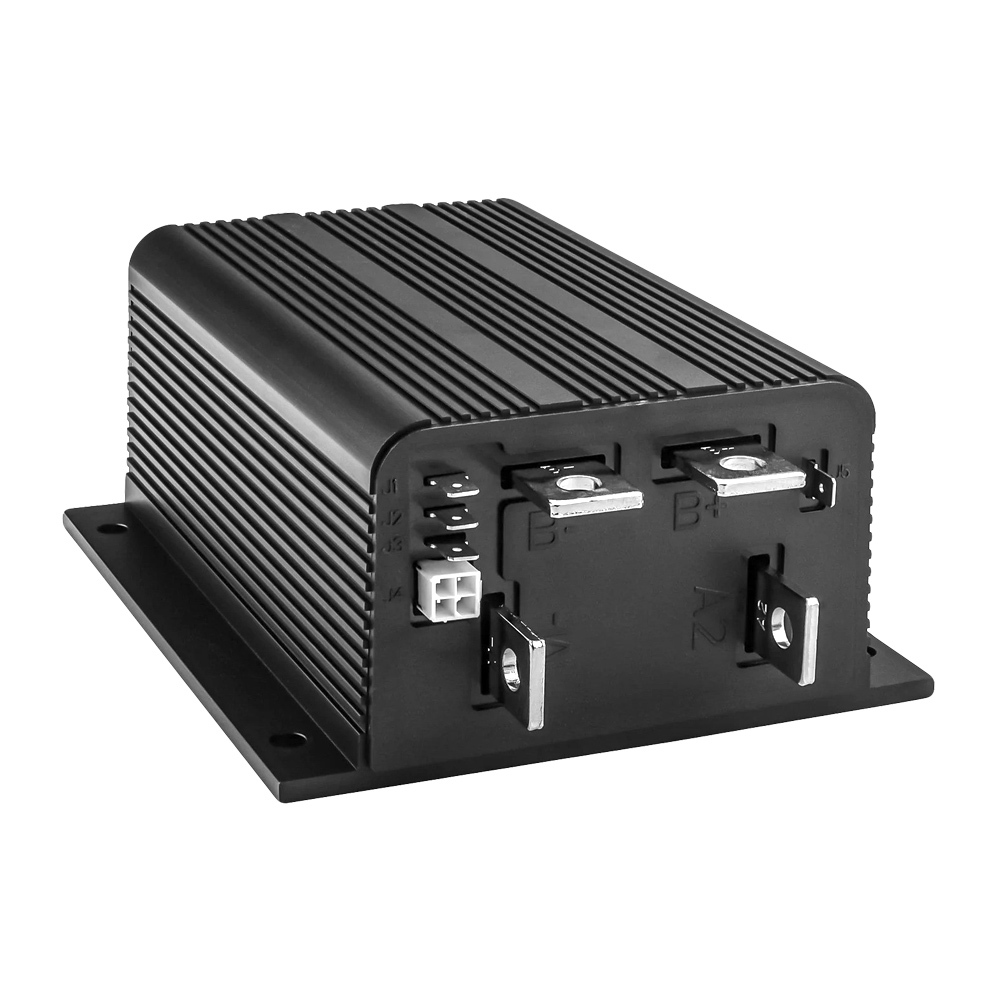

1204-410 36/48V 225A (Club) Pmc
1204-410 36/48V 225A (CLUB) PMC

Our Price: $298.76

Price with Selected Options: $298.76




Check compatibility. Ask our experts.
Part Number:
1204-410


Condition*:
Brand New ($829.35)
Remanufactured OEM ($298.76) -

Repair Service ($233.77) - Save $64.99

Qty:
Description


1204-410 36/48V 225A (Club) Pmc

Product Description

The 1204-410 36/48V 225A (Club) Pmc is a high-performance controller for the Club Car Golf Cart operating on 36V or 48V battery systems. It features a programmable microcontroller (Pmc) that allows for customized settings and diagnostics, such as throttle response, regenerative braking, speed limit, fault codes, and more. The controller also has a built-in low voltage cut-off, overcurrent protection, and thermal shutdown to ensure safe and reliable operation. It is compatible with the Club Car Golf Cart and easily installed with the provided wiring harness and mounting hardware.

THIS PART IS ALSO LISTED UNDER PART NUMBER: 1204-410. ALL REMANUFACTURED, AND REBUILT ITEMS ARE SUBJECT TO A CORE CHARGE. THE CORE CHARGE IS REFUNDABLE. THE REFUND AMOUNT WILL BE DETERMINED BY THE STATUS OF THE CORE RETURNED.

Cross Reference:

CC101840201, CL7007665, CT1204-410, HU3143819R, PHA000029431, PHAX00001230, YP1500226-53R, 101840201, 7007665, 1204-410, 3143819R, A000029431, AX00001230, 1500226-53R.

Suggested Accessories Part Numbers:

76-1415-GOLF , 76-908HRNS48V , 76-908R3648BNJO , 94-CM174 , 100-586117111 , 100-586120111 , 43-8012-30 , 76-1415-GOLF , 76-908HRNS48V , 76-908R3648BNJO , 94-CM174 , 100-586117111 , 100-586120111 , 43-8012-30 , 76-1415-GOLF , 51-42L500NNVS , 51-42L700NNVS , 76-1204-410 , 1204-410*

Technical Manual: 1204 1205 Data Sheet

1204-410
1204-410 36/48V 225A Pmc

Product Specifications

The 36/48V 225A (Club) Pmc specifications are mentioned below.

Condition

New, Used, and Remanufactured

Brand

Curtis

Part Type

Motor Controller

Manufacturer Part Number

1204-410

Compatible Equipment Type

Club Car Golf Cart

Modified Item

Yes

Warranty Information

This motor controller comes with a 6-month warranty, upgradeable up to 36 months.

Applications

Club Car Golf Cart


Club Car Golf Cart

Frequently Asked Questions

Q: How do I install the 36/48V 225A (Club) Pmc?

A: To install this Pmc, you will need to follow these steps:

  • Disconnect the battery and the motor from the existing controller.

  • Mount the new controller in a suitable location, ensuring adequate ventilation and clearance.

  • Connect the battery, the motor, the throttle, the brake, and the key switch to the corresponding terminals on the controller.

  • Turn on the key switch and check the controller's LED indicators for error codes.

  • Use the handheld programmer to set up the desired parameters for your vehicle, such as speed limit, acceleration rate, regenerative braking, etc.

  • Test drive your vehicle and make any necessary adjustments.

Q: How do I troubleshoot the 1204-410 36/48V 225A Pmc?

A: The 1204-410 36/48V 225A (Club) Pmc has a built-in diagnostic LED that flashes codes to indicate the status and faults of the controller. You can also use the Curtis handheld programmer or the PC software to read and clear fault codes, monitor inputs and outputs and perform tests. The user manual provides a detailed explanation of the diagnostic codes and troubleshooting procedures.
