Home > Forklift > TOYOTA > 6FG20 > BRAKES >

Aftermarket Replacement Wheel Cylinder For Toyota : 47410-20540-71
WHEEL CYLINDER FOR TOYOTA : 47410-20540-71

Alternative Views:
Our Price: $19.86
BRAND: Aftermarket




Check compatibility. Ask our experts.
Part Number: TY47410-20540-71

Save Time: Bulk Order Form Click Here!

Qty:

Description

WHEEL CYLINDER FOR TOYOTA FORKLIFT (RH). CATEGORY : TOYOTA FORKLIFT PARTS. THIS PART CAN ALSO BE FOUND UNDER THE FOLLOWING PART NUMBERS : TOYOTA47410-20540-71 TOYOTA47410-20540-71 TY474102054071 TOYOTA 47410-20540-71 TY 474102054071 TY 47410-20540-71 TOYOTA474102054071 474102054071 TOYOTA 474102054071 , TY47410-20540-71. COMES WITH 1 YEAR LIMITED WARRANTY.
SPECIFICATION :

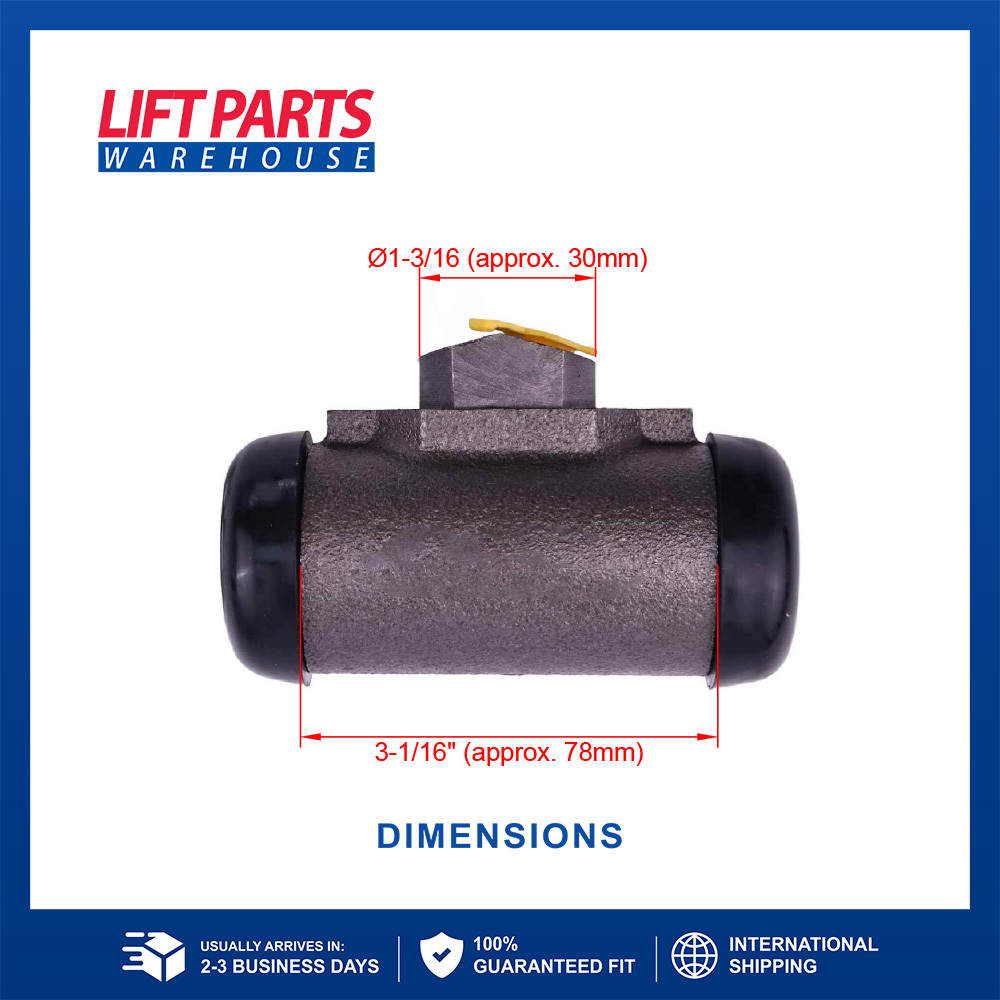

PIN TYPE INNER PISTON DIAMETER 11/8" 29MM MOUNTING HOLES 2 HOUSING LENGTH (W/O CAPS & PISTON) 3.07" 78MM NECK DIAMETER 1.18" 30MM TYPE RIGHT REPAIR KIT SY41980.

OEM Number: 47410-20540-71
Model Applications: TCM FD20-25Z5 , FG20-25N5 , FD20-25T6 , FG20-25T6 ;CPCD20-25, CPC20-25, CPD20-25;HELI Tractor QYC20-25;Toy. 6FD20-30, 6FG20-30, 6FDA20-30, 6FGA20-30, 6FDF20-30, 6FGF20-30, 6FDN20-30, 6FB20-30 RH
Additional Specs: , Inner leather collar type

Application: Forklift

Model Serial PrefixEngineMake
6FD20-1DZTOYOTA
6FD23-1DZTOYOTA
02-6FDU20-1DZTOYOTA
6FG20-4YTOYOTA
42-6FGU25-4YTOYOTA
6FD20-1DZTOYOTA
6FD25-1DZTOYOTA
6FD30-1DZTOYOTA
6FD25-1DZTOYOTA
02-6FD28-1DZTOYOTA
6FD30-1DZTOYOTA
02-6FDU25-1DZTOYOTA
02-6FGU30-4YTOYOTA
42-6FG23-4YTOYOTA
42-6FG25-4YTOYOTA
42-6FGU20-4YTOYOTA
52-6FG30-GM-4181TOYOTA
52-6FGU20-GM-4181TOYOTA
52-6FGU25-GM-4181TOYOTA
52-6FGU30-GM-4181TOYOTA
6FD20-1DZTOYOTA
6FD20-1DZTOYOTA
6FD23-1DZTOYOTA
6FD23-1DZTOYOTA
6FD25-1DZTOYOTA
62-6FD28-1DZTOYOTA
----
6FD30-1DZTOYOTA
6FD30-1DZTOYOTA
62-6FDU20-1DZTOYOTA
----
62-6FDU25-1DZTOYOTA
----
62-6FDU30-1DZTOYOTA
----
6FD23-1DZTOYOTA
6FD28-1DZTOYOTA
6FG20-4YTOYOTA
