47210-U2170-71 Aftermarket Replacement Master Cylinder for Toyota Forklifts
Product Description
The 47210-U2170-71 master cylinder is a hydraulic device that converts the force applied by the brake pedal into hydraulic pressure that activates the wheel cylinders. The master cylinder consists of a reservoir, a piston, a spring, and a rubber seal. The reservoir holds the brake fluid and supplies it to the piston. The piston moves inside the cylinder when the brake pedal is pressed, creating pressure in the brake lines. The rubber seal prevents fluid leakage and maintains pressure.
This part is also listed under the following part numbers: TOYOTA47210-U2170-71, TOYOTA47210-U2170-71, TY47210U217071, TOYOTA 47210-U2170-71, TY 47210U217071, TY 47210-U2170-71, TOYOTA47210U217071, 47210U217071, TOYOTA 47210U217071, TY47210-U2170-71.

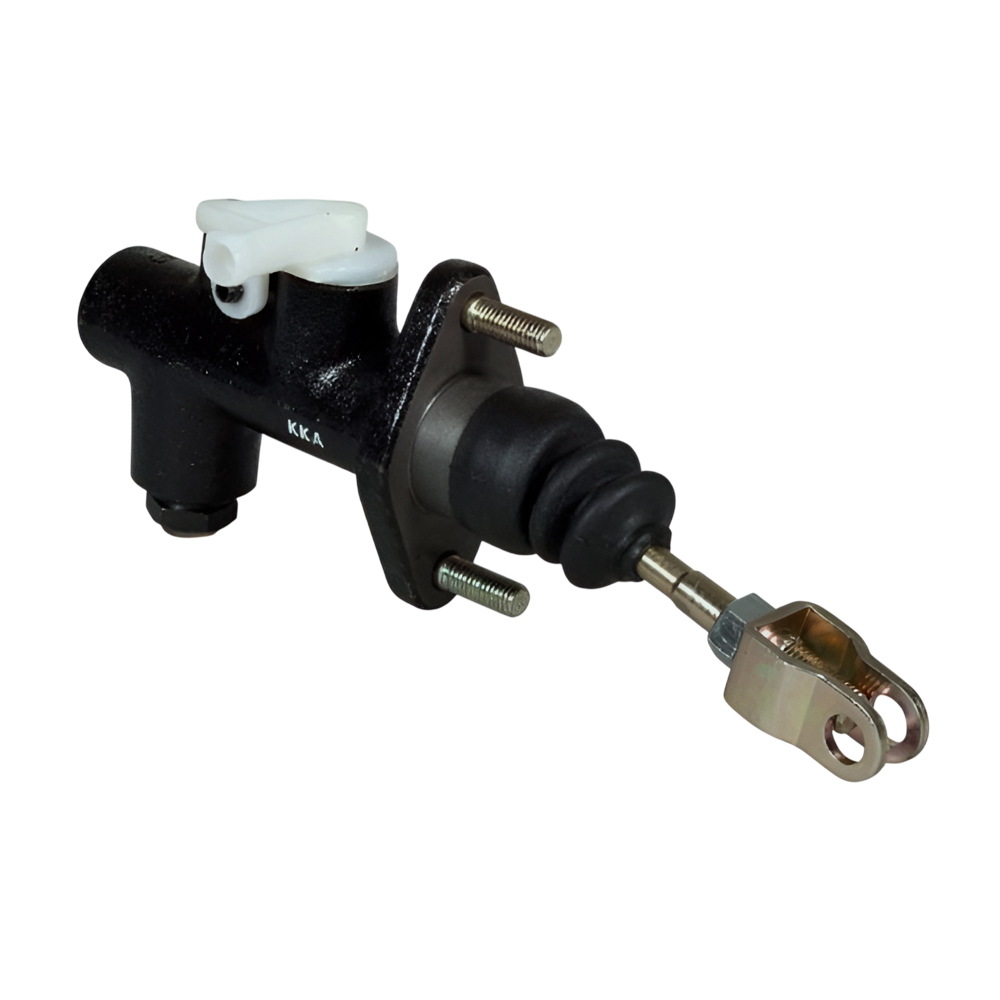

47210-U2170-71 Master Cylinder
Product Specifications
The 47210-U2170-71 master cylinder has the following specifications:
Condition | New |
Brand | Aftermarket |
Part Type | Master Cylinder |
Manufacturer Part Number | 47210-U2170-71 |
Cylinder Length | 5.04 Inch |
Includes Push Rod? | Yes |
Weight | 2.04 LB |
Oil Type | Brake |
Bore Size | 5/8 Inch |
Mounting Hole Distance | 2.36 Inch |
Compatible Equipment Type | Forklift |
Compatible Equipment Make | Toyota |
Features and Benefits
The 47210-U2170-71 master cylinder offers the following features and benefits:
High-quality cast iron material that resists corrosion and wear
Precise machining that ensures smooth operation and fitment
Easy installation that requires no modifications or adjustments
Improved braking performance and safety
Affordable price and fast shipping
Applications
The 47210-U2170-71 master cylinder is compatible with Toyota forklift models.
Model | Serial Prefix | Engine | Make |
7FBCU25 | - | ELECTRIC | TOYOTA |
8FGU32 | - | 4Y | TOYOTA |
7FBCHU25 | - | ELECTRIC | TOYOTA |
7FBCU15 | - | ELECTRIC | TOYOTA |
7FBCU18 | - | ELECTRIC | TOYOTA |
7FBCU20 | - | ELECTRIC | TOYOTA |
7FBCU30 | - | ELECTRIC | TOYOTA |
7FBCU32 | - | ELECTRIC | TOYOTA |
7FBCHU25 | - | ELECTRIC | TOYOTA |
7FBCU15 | - | ELECTRIC | TOYOTA |
7FBCU18 | - | ELECTRIC | TOYOTA |
7FBCU20 | - | ELECTRIC | TOYOTA |
7FBCU25 | - | ELECTRIC | TOYOTA |
7FBCU30 | - | ELECTRIC | TOYOTA |
7FBCU32 | - | ELECTRIC | TOYOTA |
7FGCSU20 | - | 4Y | TOYOTA |
7FGCU15 | - | 4Y | TOYOTA |
7FGCU18 | - | 4Y | TOYOTA |
7FGU30 | - | 4Y | TOYOTA |
7FGU32 | - | 4Y | TOYOTA |
8FBCHU25 | - | ELECTRIC | TOYOTA |
8FBCU20 | - | ELECTRIC | TOYOTA |
8FBCU25 | - | ELECTRIC | TOYOTA |
8FBCU28 | - | ELECTRIC | TOYOTA |
8FBCU30 | - | ELECTRIC | TOYOTA |
8FBCU32 | - | ELECTRIC | TOYOTA |
8FDU15 | - | 1DZ | TOYOTA |
8FDU15 | - | 1ZS | TOYOTA |
8FDU18 | - | 1DZ | TOYOTA |
8FDU18 | - | 1ZS | TOYOTA |
8FDU20 | - | 1DZ | TOYOTA |
8FDU20 | - | 1ZS | TOYOTA |
8FDU25 | - | 1DZ | TOYOTA |
8FDU25 | - | 1ZS | TOYOTA |
8FDU30 | - | 1DZ | TOYOTA |
8FDU30 | - | 1ZS | TOYOTA |
8FDU32 | - | 1DZ | TOYOTA |
8FDU32 | - | 1ZS | TOYOTA |
8FGCSU20 | - | 4Y | TOYOTA |
8FGCU15 | - | 4Y | TOYOTA |
8FGCU18 | - | 4Y | TOYOTA |
8FGCU20 | - | 4Y | TOYOTA |
8FGCU25 | - | 4Y | TOYOTA |
8FGCU30 | - | 4Y | TOYOTA |
8FGCU32 | - | 4Y | TOYOTA |
8FGU15 | - | 4Y | TOYOTA |
8FGU18 | - | 4Y | TOYOTA |
8FGU20 | - | 4Y | TOYOTA |
8FGU25 | - | 4Y | TOYOTA |
8FGU30 | - | 4Y | TOYOTA |
Warranty Information
This aftermarket master cylinder has a one-year warranty covering any defects in materials or workmanship.
Not Sure Will This Part Fits Your Equipment?
If you are unsure whether this master cylinder is compatible with your Toyota forklift, we are here to help. You can contact us through any of our channels:
Our friendly and knowledgeable staff will assist you with any questions or concerns. We can also help you find other parts or accessories for your forklift.
Frequently Asked Questions & Answers
Q: How do I know if my master cylinder is faulty?
A: Some common signs of a faulty master cylinder are:
Spongy or soft brake pedal
Brake fluid leakage under the dash or near the firewall
Reduced braking power or distance
The brake warning light on the dashboard
Q: How do I replace my master cylinder?
A: To replace your master cylinder, you will need to follow these steps:
Disconnect the negative battery cable
Locate the master cylinder on the driver's side of the firewall
Remove the brake lines from the master cylinder using a wrench or a flare nut tool
Remove the mounting bolts and nuts that secure the master cylinder to the firewall using a socket wrench or a ratchet
Pull out the old master cylinder and discard it properly
Install the new master cylinder in reverse order of removal, making sure to align it correctly and tighten all the fittings securely
Bleed the brake system to remove any air bubbles from the lines
Q: How do I bleed my brake system?
A: To bleed your brake system, you will need to follow these steps:
Fill the master cylinder reservoir with fresh brake fluid up to the maximum level mark
Attach a clear hose to the bleeder valve on each wheel cylinder and place the other end in a container filled with brake fluid
Have an assistant pump the brake pedal several times and then hold it down firmly
Loosen the bleeder valve slightly until fluid starts to flow out of the hose, then tighten it again
Repeat this process until no air bubbles are seen in the fluid coming out of the hose, then move on to the next wheel cylinder in this order: right rear, left rear, right front, left front
Check the fluid level in the reservoir and top it off if needed
Q: How often should I check and change the brake fluid on my Toyota forklift?
A: You should check the brake fluid level in your Toyota forklift at least once a month and change it every two years or according to your maintenance schedule. Brake fluid can deteriorate over time due to moisture absorption, contamination, or high temperatures, which can affect its performance and cause corrosion or damage to your brake system components.
