Master Cylinder For Hyster : 1347048
MASTER CYLINDER FOR HYSTER : 1347048

Our Price: $44.52




Check compatibility. Ask our experts.
Part Number:
HY1347048
Qty:

Description


1347048 Master Cylinder For Hyster

Category: Hyster Forklift Parts

Product Description

This is a Master Brake Cylinder for Hyster Forklift with Parts Number: 1347048.

This part is also listed under the following part numbers:

  • MAM45110
  • LP605-7035
  • INBP-1424
  • GM0246-MJJ0
  • ET15114
  • CR380021-3-2
  • AF00318
  • HYSTER1347048
  • 1347048
  • HYSTER 1347048
  • HY1347048

Cross Reference: 1347048, AF00318, CL7001081, CR380021-003-02, CR380021-3-2, CTA0000-01552, CTA000001552, CT14495460, ET15114, GM0246-MJJ0, HY1347048, HY3057522, INBP-1424, JU1449546, JU14495460, LP605-7035, MAM45110, MBA0000-01552, MBA000001552, MB14495460, SY31568, TY00591-35435-81, TY00591-58023-81, YT220037522, YT330015565, YT505963537, 5913543581, 5915802381, 220037522, 3057522, 800085731


Application: For Hyster Forklifts. A complete list of Applicable Models is given here.

Product Specifications

Specifications of the 1347048 Master Brake Cylinder:

Part Type Master Brake Cylinder
Brand Aftermarket
Condition New
Cylinder Length 7.95 inches or 202 mm
Mounting Hole Distance 3.21 inches or 82 mm
Bore Size 7/8 inches
Oil Type Brake Oil
Pushrod Yes
Repair Kit SY31564
Weight 5.5 lbs.

1347048 Master Cylinder for Hyster

The 1347048 Master Cylinder is a part of your Hyster Forklift brake assembly. This device transforms your foot pressure on the brake pedal into hydraulic pressure that helps the brake mechanism stop the forklift.

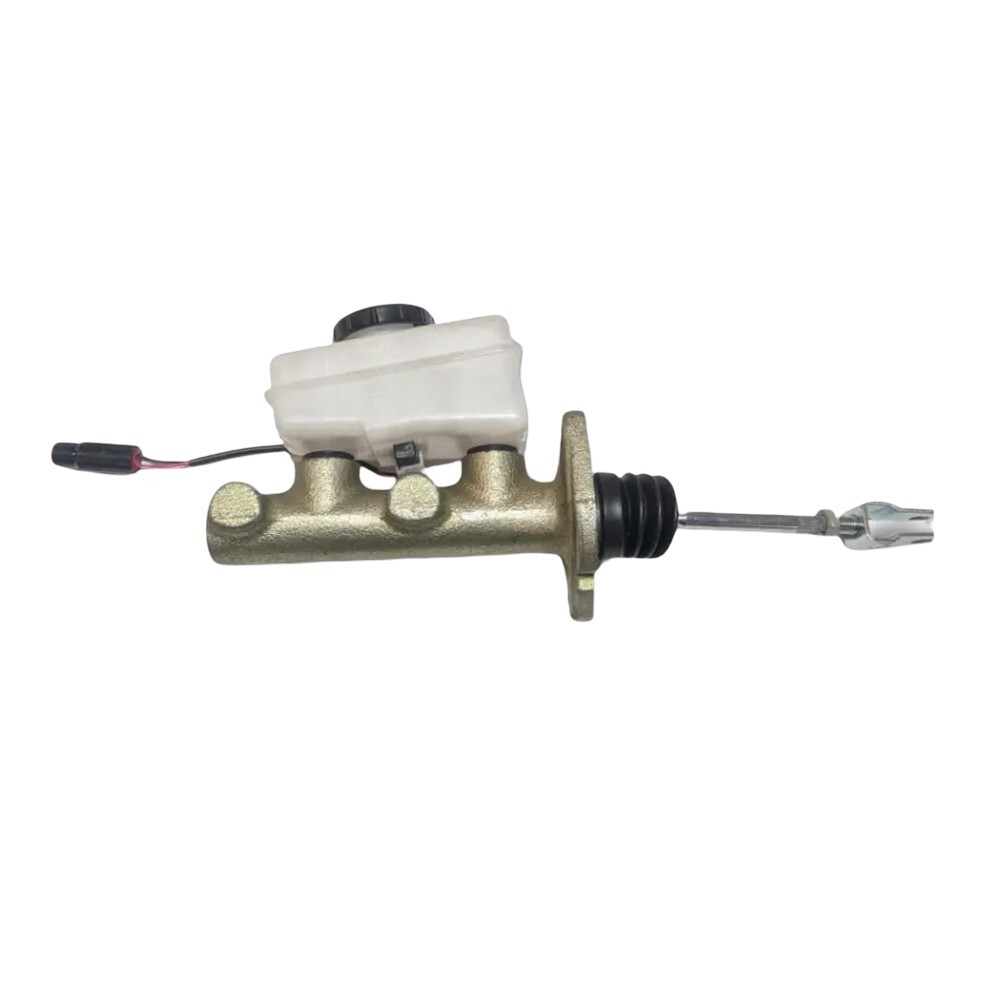

An image of a 1347048 Brake Cylinder For Hyster

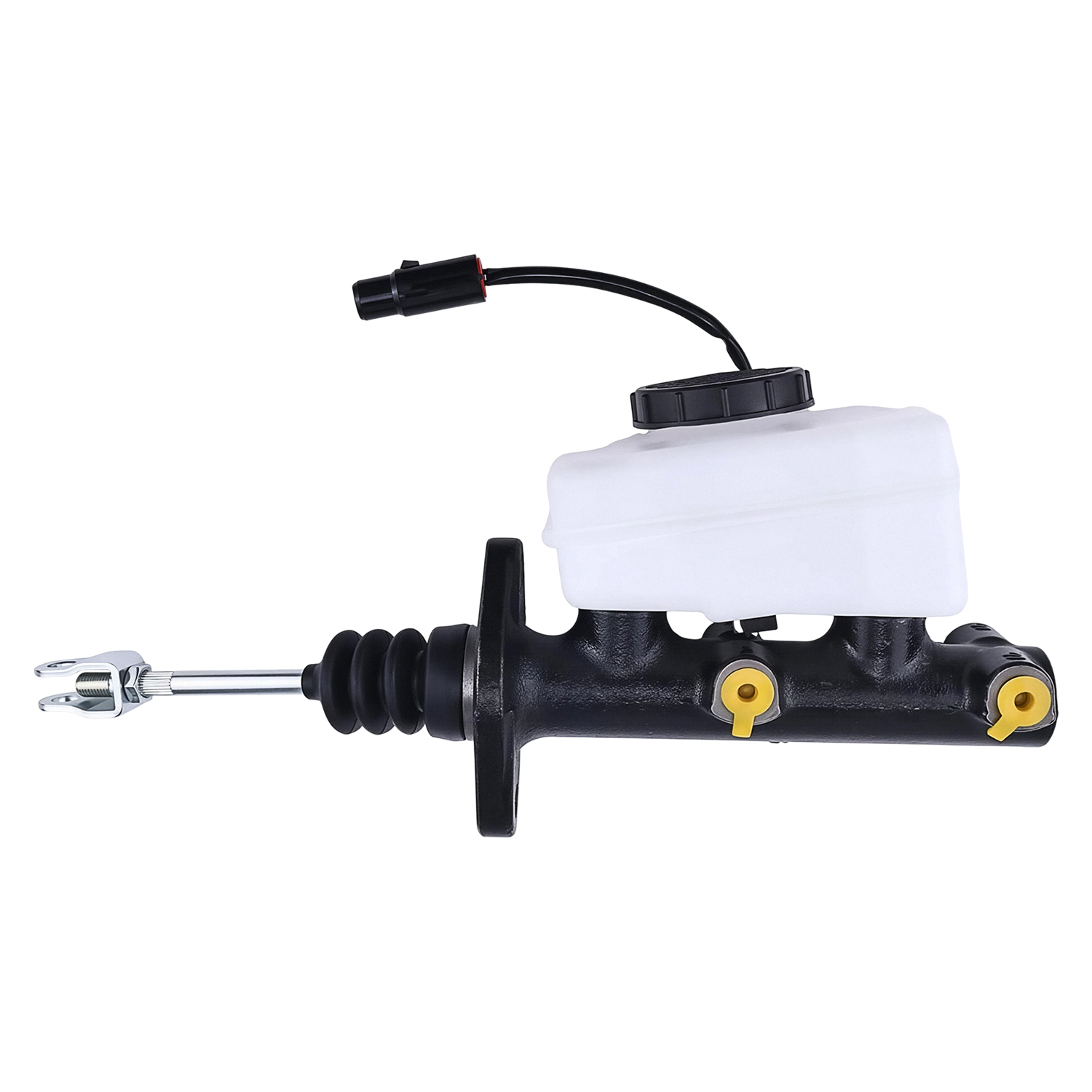

Figure: 1347048 Master Cylinder For Hyster

Signs of a failing master cylinder

A forklift brake cylinder does not last forever. After prolonged use, it may start to fail. A failed master cylinder will cause brake failure, leading to forklift accidents. It is crucial to identify a failing brake cylinder to maintain workplace safety. Here are the most common signs of a brake cylinder failure:


  1. Brake warning light
  2. Squishy or spongy brake pedal
  3. Leaking brake fluid
  4. Drifting to one side when braking
  5. Uneven wear in brake pads

Warranty Information

The 1347048 Master Cylinder For Hyster comes with a 1-year limited warranty.

Frequently Asked Questions

Is the 1347048 an aftermarket master cylinder?

Yes, it is an aftermarket master brake cylinder that can replace your original master cylinder with OEM number 1347048.

Which Forklifts can use this master cylinder?

You can use this master with select Hyster forklifts. A detailed list of applicable forklifts is given above.

Does this master cylinder include pushrods?

Yes, it includes pushrods.

What is the cylinder length of this Master Cylinder?

It has a length of 7.95 inches without the pushrod.

What repair kit is suitable for this master cylinder?

SY31564 is the designated repair kit for this master cylinder

Are you looking for something else for your Forklift? Please browse our Catalogue for Forklift Parts. Lift Parts Warehouse provides quality aftermarket parts at a very reasonable price. All parts come with a limited 1 Year Warranty. We also guarantee a 100% fit for our parts.

Applicable Models

Model Serial Prefix Engine/Power Unit Category Make
E45XM2 F108 ELECTRIC BRAKES HYSTER
E45XM F108 ELECTRIC BRAKES HYSTER
E50XM F108 ELECTRIC BRAKES HYSTER
E55XM2 F108 ELECTRIC BRAKES HYSTER
E60XM2 F108 ELECTRIC BRAKES HYSTER
E60XM F108 ELECTRIC BRAKES HYSTER
E65XM2 F108 ELECTRIC BRAKES HYSTER
E65XM F108 ELECTRIC BRAKES HYSTER
E40Z G108 ELECTRIC BRAKES HYSTER
E50Z G108 ELECTRIC BRAKES HYSTER
E60Z G108 ELECTRIC BRAKES HYSTER
H45XM D177 FE BRAKES HYSTER
H45XM H177 PERKINS 2.6l BRAKES HYSTER
H45XM H177 GM 3.0L BRAKES HYSTER
H45XM K177 GM 3.0L BRAKES HYSTER
H50XM D177 FE BRAKES HYSTER
H50XM D177 C240 BRAKES HYSTER
H50XM D177 GM 3.0L BRAKES HYSTER
H50XM H177 FE BRAKES HYSTER
H50XM K177 GM 3.0L BRAKES HYSTER
H55XM D177 C240 BRAKES HYSTER
H55XM H177 FE BRAKES HYSTER
H55XM H177 PERKINS 2.6L BRAKES HYSTER
H55XM H177 GM 3.0L BRAKES HYSTER
H55XM K177 GM 3.0L BRAKES HYSTER
H60XM D177 FE BRAKES HYSTER
H60XM D177 GM 3.0L BRAKES HYSTER
H60XM H177 FE BRAKES HYSTER
H60XM H177 PERKINS 2.6L BRAKES HYSTER
H60XM H177 GM 3.0L BRAKES HYSTER
H60XM K177 GM 3.0 L BRAKES HYSTER
H65XM D177 GM 3.0L BRAKES HYSTER
H65XM H177 FE BRAKES HYSTER
H65XM H177 PERKINS 2.6L BRAKES HYSTER
H65XM H177 GM 3.0L BRAKES HYSTER
H65XM K177 GM 3.0 L BRAKES HYSTER
S40XM D187 FE BRAKES HYSTER
S40XM D187 GM 3.0L BRAKES HYSTER
S45XM D187 FE BRAKES HYSTER
S45XM D187 GM 3.0L BRAKES HYSTER
S50XM D187 FE BRAKES HYSTER
S50XM D187 GM 3.0L BRAKES HYSTER
S55XM D187 FE BRAKES HYSTER
S55XM D187 GM 3.0L BRAKES HYSTER
S60XM D187 GM 3.0L BRAKES HYSTER
E35XM2 D114 ELECTRIC BRAKES HYSTER
E35XM D114 ELECTRIC BRAKES HYSTER
E40XMS D114 ELECTRIC BRAKES HYSTER
E25XM D114 ELECTRIC BRAKES HYSTER
E25Z E114 ELECTRIC Sheet103 HYSTER
E30XM2 D114 ELECTRIC BRAKES HYSTER
E40Z E114 ELECTRIC BRAKES HYSTER
