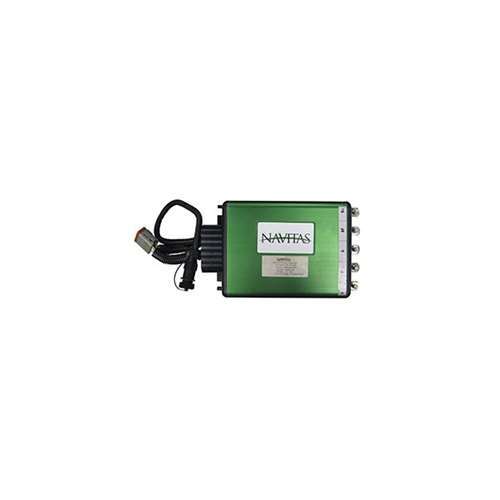

DSE1000HF2 Navitas 24/48V DC Traction Controller

Product Description

The DSE1000HF2 is a traction controller for series motors. The controller is fully programmable, comes with housing suitable for rugged environments, powers up with safe sequencing, and has functions such as static return to off and emergency reverse. The controller can operate at 24V or 48V and has a peak current of 600A. The controller also has a built-in diagnostic LED and a serial port for communication with a PC or a handheld programmer.

CROSS REFERENCE:

CL7011407, HU4132266, NVDSE1000-HF2, PHAX00002230, YP550121898, YP5501218-98, 7011407, 4132266, DSE1000-HF2, AX00002230, 550121898, 5501218-98.

DSE1000HF2 Navitas 24/48VDC Traction Controller

Product Specifications

The specifications of this controller are mentioned below.

Condition	Remanufactured OEM
Brand	Navitas
Part Type	DC Traction Controller
Manufacturer Part Number	DSE1000HF2
Output Current	1000 A Continuous: 325 A
Voltage	24/48 VDC
Compatible Equipment Type	Electric Vehicle

Features and Benefits

Programmability

It can be customized to suit your specific needs and preferences. You can adjust parameters such as acceleration, deceleration, speed limit, current limit, regenerative braking, and throttle type, etc. You can program the controller using the Navitas PC software or the handheld programmer.

Performance

It delivers smooth and precise control of the motor speed and torque. It also has a high efficiency of up to 98% and a low voltage drop of less than 0.5V. The controller can handle high currents and temperatures without compromising its performance.

Safety

It has several safety features to protect the motor, the battery, and the user. It has overcurrent, overvoltage, undervoltage, overtemperature, short circuit, and reverse polarity protection. It also has a static return-to-off function that ensures the motor stops when the throttle is released or the key switch is turned off. Additionally, it has an emergency reverse function that allows the user to reverse the direction of the motor in case of an obstacle or danger.

Durability

It has a robust design that can withstand harsh conditions. It has a sealed housing that protects it from dust, water, and vibration. It also has a thermal management system that prevents overheating and extends the controller's lifespan.

Recommended Use/Applications

The DSE1000HF2 Navitas 24/48V DC traction controller is suitable for electric vehicles.

Electric Vehicle

Warranty Information

This DC traction controller comes with a 6-month warranty, upgradable for up to 36 months. All remanufactured and rebuilt items are subject to a core charge. The core charge is refundable. The refund amount will be determined by the status of the core returned.

Not Sure Will This Part Fits Your Equipment?

If you are not sure whether this part fits your equipment or not, don't worry. We are here to help you find the right part for your EV needs. You can contact us through any of our channels:

Phone number: 1.800.210.8170
Email: [email protected]
Contact form: https://www.liftpartswarehouse.com/articles.asp?id=83
Live chat: Available on our website

Our friendly and knowledgeable staff will assist you with any questions or concerns you may have. We will also provide you with a free quote and fast shipping.

Frequently Asked Questions

Q: How do I program the controller?

A: You can program the controller using the Navitas PC software or the handheld programmer. You will need a serial cable to connect the controller to the PC or the programmer. You can download the software and the user manual from the Navitas website.

Q: How do I install the controller?

A: You must mount the controller on a flat surface with adequate ventilation. You will also need to connect the wires from the controller to the motor, the battery, the throttle, the key switch, and other accessories. You can refer to the wiring diagram and the installation guide from the Navitas website.

Q: How do I troubleshoot the controller?

A: The controller has a diagnostic LED that indicates the status and any faults of the controller. You can use the LED codes and the troubleshooting guide from the Navitas website to identify and resolve any issues.

Q: Where can I buy the controller?

A: You can buy the controller from our website, Lift Parts Warehouse. We offer high-quality forklift parts at competitive prices. We also offer free shipping on orders over $650, same-day shipping on orders placed before 2 pm PT/5 pm ET, and a 30-day return policy. You can browse our catalog and place your order online.
