1207A-4119 24V 250A (5K-0) Pmc
1207A-4119 24V 250A (5K-0) PMC

Our Price: $326.89

Price with Selected Options: $326.89




Check compatibility. Ask our experts.
Part Number:
1207A-4119


Condition*:
Remanufactured OEM ($326.89) -

Repair Service ($262.87) - Save $64.02

Qty:
Description

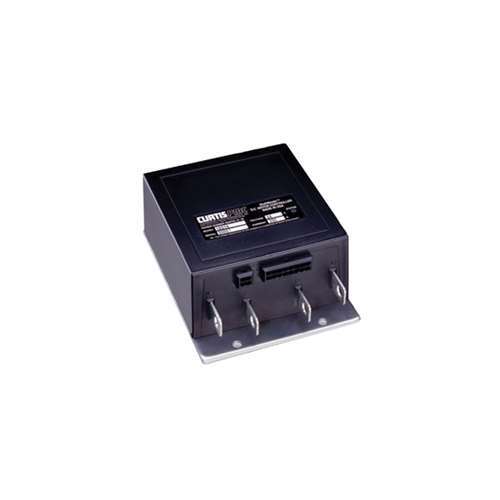

1207A-4119 24V 250A (5K-0) Curtis Pmc

Product Description

The 1207A-4119 24V 250A (5K-0) Curtis Pmc is a microprocessor-based controller that offers optimal performance and durability for electric vehicles. It features a dual-mode operation that allows it to switch between speed control and torque control modes depending on the load conditions. It also has a programmable acceleration rate and deceleration rate and a regenerative braking function that recovers energy and extends battery life. The controller is housed in a rugged aluminum enclosure sealed to IP65 standards, making it resistant to dust and water ingress.

Cross Reference:

CL7007892, CT1207A-4119, HU3182195R, PHAX00001454, YP1501071-79R, 7007892, 1207A-4119, 3182195R, AX00001454, 1501071-79R.

Suggested Accessories Part Numbers:

76-1207B-4119

Technical Manual: 1207 07A Manual

1207A-4119 24V 250A (5K-0) Curtis Pmc

Product Specifications

The specifications of this pmc controller are mentioned below.

Condition

Remanufactured OEM

Brand

Curtis

Part Type

Pmc Motor Controller

Manufacturer Part Number

1207A-4119

Voltage

24V

Current

25

Throttle Input

5K-0

Operating Frequency

15 kHz

Compatible Equipment Type

Electric Vehicle

Features and Benefits

  • Dual-mode operation for speed control and torque control

  • Programmable acceleration and deceleration rates

  • Regenerative braking function

  • Comprehensive protection circuit

  • Rugged and sealed aluminum enclosure

Applications

The 1207A-4119 controller can be used for various electric vehicles.

Electric Vehicle

Warranty Information

This Curtis controller comes with a 6-month warranty, upgradable for up to 36 months. All remanufactured and rebuilt items are subject to a core charge. The core charge is refundable. The refund amount will be determined by the status of the core returned.

Not Sure Will This Part Fits Your Equipment?

If you are unsure whether this controller is compatible with your electric vehicle or motor, we are here to help you. You can contact us through any of the following channels:

Our friendly and knowledgeable staff will assist you with any questions or concerns regarding the product specifications, compatibility, installation, or troubleshooting. We are committed to providing you with the best customer service and satisfaction.

Frequently Asked Questions & Answers

Q: How do I connect the throttle input to the controller?

A: The controller accepts a potentiometer-type throttle input with a range of 5K ohms to zero ohms. You can connect the throttle input wires to the terminals B+, B-, and W on the controller. The polarity of the wires does not matter.

Q: How do I connect the motor to the controller?

A: You can connect the motor wires to the terminals M+ and M- on the controller. The polarity of the wires determines the direction of rotation of the motor. To reverse the direction of rotation, you can swap the wires.

Q: How do I connect the battery to the controller?

A: Connect the battery wires to the terminals B+ and B- on the controller. The polarity of the wires must match the polarity of the battery terminals. You should also install a fuse or a circuit breaker between the battery and the controller to protect them from short circuits.

Q: How do I troubleshoot the controller if it does not work properly?

A: You can use the Curtis handheld programmer or the Curtis PC software to read the fault codes and diagnostic information from the controller. The fault codes indicate the type and source of the problem, such as overcurrent, under voltage, over-voltage, short circuit, or overheating. The diagnostic information includes the battery voltage, motor current, throttle input, output state, and temperature.
