1204-002 24/36V 275A (5K-0) Pmc

Product Description

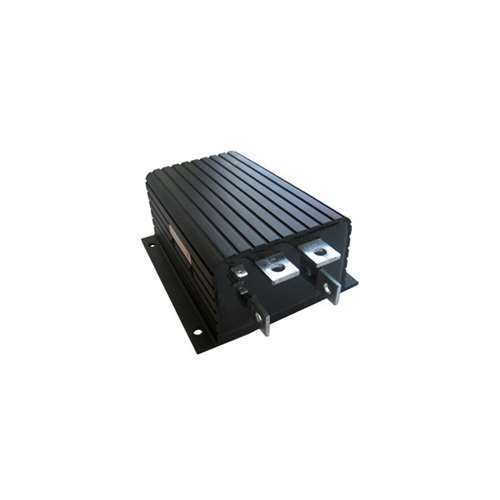

The 1204-002 Pmc is a controller that regulates the speed and direction of an electric motor in an electric vehicle. It is compatible with 24V or 36V systems and can handle up to 275 amps of current. It has a 5K-0 throttle input, which means that it uses a potentiometer to measure the position of the accelerator pedal. The controller also has various features and protections, such as overcurrent, under voltage, over temperature, short circuit, and reverse polarity.

Cross Reference:

CL026-474, CT1204-002, PHAX00001164, 026-474, 1204-002, AX00001164

Suggested Accessories Part Numbers:

76-1415-GOLF , 76-908HRNS48V , 76-908R3648BNJO , 94-CM174 , 100-586117111 , 43-8012-30 , 76-1415-GOLF , 76-908HRNS48V , 76-908R3648BNJO , 94-CM174 , 100-586117111 , 43-8012-30 , 76-1415-GOLF , 76-908HRNS48V

Technical Manual:

1205 05 Manual

1204-002 24/36V 275A (5K-0) Pmc

Product Specifications

The specifications of this pmc are mentioned below.

Features and Benefits

Some of the features and benefits of this 1204-002 pmc are:

• It has a microprocessor-based logic circuit that ensures smooth and precise motor control.

• It has a built-in diagnostic LED that indicates the status and fault codes of the controller.

• It has a programmable personality module that allows you to customize the performance parameters of the controller according to your preferences and needs.

• It has a thermal protection feature that prevents overheating and damage to the controller and the motor.

• It has a low voltage cutback feature that protects the battery from excessive discharge and prolongs its life span.

• It has a high pedal disable feature that prevents accidental activation of the motor when the throttle is not at zero position.

• It has a plug-and-play design that makes it easy to install and replace.

Recommended Use

The 1204-002 24/36V 275A Pmc is suitable for various types of electric vehicles.

Electric Vehicle

Warranty Information

The 1204-002 pmc comes with a 6-month warranty, upgradable for up to 36 months. All remanufactured and rebuilt items are subject to a core charge. The core charge is refundable. The refund amount will be determined by the status of the core returned.

Not Sure Will This Part Fits Your Equipment?

If you are not sure whether this part is compatible with your electric vehicle or motor model, don't worry. We are here to help you find the right part for your needs. You can contact us through any of our channels: phone number: 1.800.210.8170, email: [email protected], contact form: https://www.liftpartswarehouse.com/articles.asp?id=83, or live chat. Our friendly and knowledgeable staff will gladly assist you and answer any questions. We are available Monday to Friday from 9 am to 8 pm EST.
