3EB-30-41440 Wheel Cylinder For Komatsu & Allis-Chalmers
Category: Komatsu Forklift Parts
Product Description
This is a Wheel Cylinder for Komatsu & Allis-Chalmers Forklifts with Parts Number: 3EB-30-41440.
This part is also listed under the following part numbers:
- KOMATSU & ALLIS-CHALMERS3EB-30-41440
- KO3EB3041440
- KOMATSU & ALLIS-CHALMERS 3EB-30-41440
- KO 3EB3041440
- KO 3EB-30-41440
- KOMATSU & ALLIS-CHALMERS3EB3041440
- KOMATSU & ALLIS-CHALMERS 3EB3041440
- KO3EB-30-41440
- ac3eb-30-41440
- ALLIS CHALMERS/TUSK3EB-30-41440
- AC3EB3041440 ALLIS CHALMERS/TUSK
- AC 3EB3041440
- AC 3EB-30-41440
- 3EB3041440
- ALLIS CHALMERS/TUSK
- 3EB3041440
- ALLIS CHALMERS/TUSK3EB3041440
- ac3eb-30-41440
Application:
- TCM FD30T3/C3/T4/C4/W3, FG30T3/C3/T4/C4/W3
- Komatsu FD20-30-15/-16/-17, FG20-30-15/-16/-17
- Mitsubishi FD20-25N(F18C), FG20-25N(F17D), FD30-35AN(F14E), FG30-35AN(F13F)
- Nissan L01/L02, 1F1/1F2
Product Specifications
Specifications of the 3EB-30-41440 Wheel Brake Cylinder:
Part Category
|
Wheel Cylinder
|
Brand
|
Aftermarket
|
Condition |
New |
Fitment |
Direct Replacement |
Mounting Holes
|
2
|
Neck Diameter
|
1.34 Inch
|
Bore/ Inner Piston Diameter
|
11/8 Inch
|
Housing Length
|
3.07 Inch
|
Material
|
Steel
|
Weight
|
0.5 kg
|

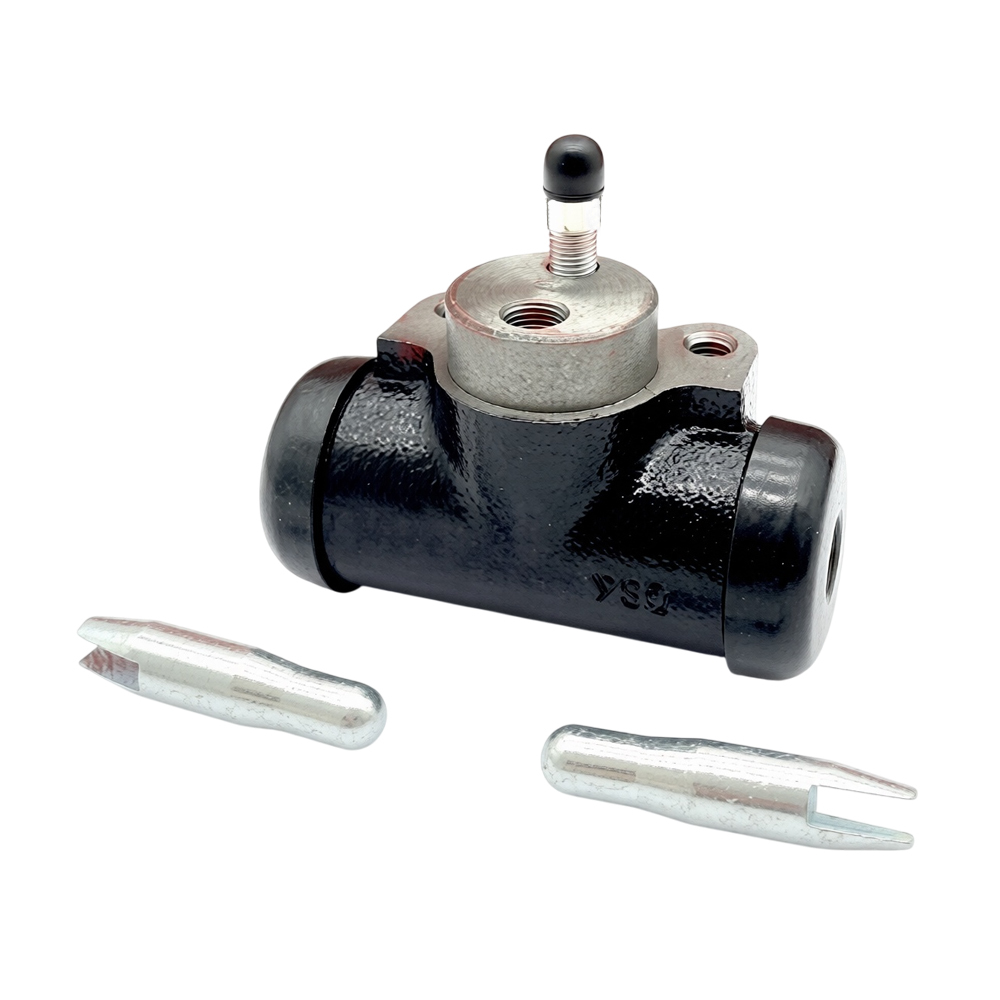

3EB-30-41440 Wheel Cylinder
This is an aftermarket Wheel Brake Cylinder for Komatsu and Allis-Chalmers. It is designed to perform the same or better than the OEM component.
What is a Wheel Cylinder
A wheel cylinder is a hydraulic cylinder and a part of your forklift’s drum brake assembly. In most cases, each wheel has a pair of these cylinders. They receive the hydraulic pressure from the master cylinder and use it to stop the forklift.
When you floor the brake pedal, the pushrod pushes the piston inside the master brake cylinder. This pressurizes the brake oil inside the cylinder. The pressure then transmits to the wheel cylinder via hydraulic lines. As the pressure reaches the wheel cylinder, it pushes the pistons in both directions. The pistons then exert force on the brake shoes which stops the wheels.
Warranty Information
The 3EB-30-41440 Wheel Brake Cylinder comes with a 1-year limited warranty.
Frequently Asked Questions
Is this an OEM part?
No, it is an aftermarket replacement for your original wheel cylinder with OEM number 3EB-30-41440.
Which Forklifts can use this wheel cylinder?
You can use this wheel cylinder with select models of Komatsu, TCM, Mitsubishi, Nissan, and Allis-Chalmers Forklifts. A list of the compatible models is given above.
How many mounting holes does it have?
It has 2 mounting holes.
What is the neck diameter of this wheel cylinder?
It has a neck diameter of 1.34 inches.
Does this wheel cylinder include a pushrod?
Yes, it includes a pushrod.
What’s the cylinder length without the pushrod?
The length of the cylinder housing is 3.07 Inches.
What’s the bore size?
The bore or the inner diameter is 11/8 Inches.
How much does it weigh?
It weighs 1.1 lbs.
Figure: Collection of Brake System Parts for Komatsu Forklifts at Lift Parts Warehouse
Do you need more parts for your Komatsu Forklift? Please browse our Catalog for Komatsu Forklift Parts.
Lift Parts Warehouse provides quality aftermarket parts at a very reasonable price. All parts come with a limited 1 Year Warranty. We also guarantee a 100% fit for our parts.
Compatible Models
Model
|
Serial Prefix
|
Engine
|
Make
|
FD28T-16
|
-
|
4D98E OR 4D94LE
|
KOMATSU
|
FD30T-16
|
-
|
4D98E OR 4D94LE
|
KOMATSU
|
FD20T-16
|
-
|
4D94LE OR 4D98E
|
KOMATSU
|
FD25T-16
|
-
|
4D94LE OR 4D98E
|
KOMATSU
|
FG20HT-16
|
-
|
K25
|
KOMATSU
|
FG20SHT-16
|
-
|
K25
|
KOMATSU
|
FG20ST-16
|
-
|
K21
|
KOMATSU
|
FG20T-16
|
-
|
K21
|
KOMATSU
|
FG25HT-16
|
-
|
K25
|
KOMATSU
|
FG25SHT-16
|
-
|
K25
|
KOMATSU
|
FG25ST-16
|
-
|
K21
|
KOMATSU
|
FG25T-16
|
-
|
K21
|
KOMATSU
|
FG28HT-16
|
-
|
K25
|
KOMATSU
|
FG28SHT-16
|
-
|
K25
|
KOMATSU
|
FG30HT-16
|
-
|
K25
|
KOMATSU
|
FG30SHT-16
|
-
|
K25
|
KOMATSU
|
FG32SHT-16
|
-
|
K25
|
KOMATSU
|
FG32ST-16
|
-
|
K25
|
KOMATSU
|
1The actual product may vary slightly in color and appearance. This image is for illustration purposes only.
